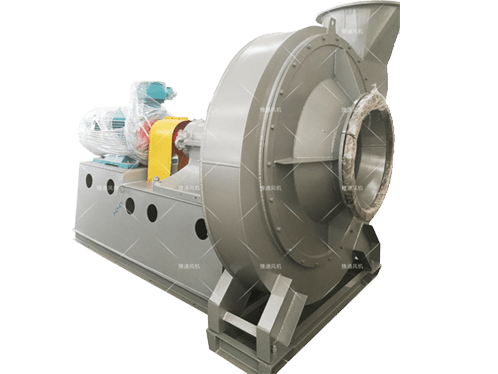

Y9-19/Y9-26 Induced Draft Fan for Boilers
The many series of boilers, big quality difference for fuel coal as well as the adding of dust removal system and surplus heat utilization equipment might cause insufficient blower sucking capacity, positive pressure to the furnace and other problems, affecting boilers’ fuel burning and normal operation. To avoid this, YUTONG designed different models of induced draft fans for boilers meeting boilers’ air capacity and air pressure.
The many series of boilers, big quality difference for fuel coal as well as the adding of dust removal system and surplus heat utilization equipment might cause insufficient blower sucking capacity, positive pressure to the furnace and other problems, affecting boilers’ fuel burning and normal operation. To avoid this, YUTONG designed different models of induced draft fans for boilers meeting boilers’ air capacity and air pressure.
Key Advantages:
1. Impeller--It consists of blades, curved front plates and straight back plates. All these parts are made of steel plates. The impeller has passed static and dynamic balance correction and thus enjoy good aerodynamic performance, high efficiency, low noise and stable operating.
2. Fans are generally equipped with air dampers to adjust their air capacity so that the air capacity and pressure meet the boilers’ optimal operating status.
3. Driving system-The driving system consists of main shaft, bearing box and belt pulley. The main shaft is made of quality steel and the bearing is rolling bearing. The bearing box has enough capacity inside for cooling oil and is equipped with oil level indicator to ensure normal blower operation.
|
Item name |
Y9-19, Y9-26 Induced Draft Fan for Boilers |
||
|
Parts details |
Impeller diameter |
450~1600 |
mm |
|
Speed of main shaft |
1330~2150 |
r/min |
|
|
Pressure range |
1365~3526 |
Pa |
|
|
Flow range |
1146~17258 |
m3/h |
|
|
Structure |
Blade structure |
Forward |
|
|
Impeller support |
Single support |
||
|
Drivetrain |
A/D |
Assignable |
|
|
Lubrication |
Oil bath lubrication /Grease lubrication |
Assignable |
|
|
Bearing cooling |
Circulation water cooling / air cooling |
|
|
|
Circulation oil cooling |
|
||
|
System
configuration |
Motor |
Anhui Wannan, Lu’an Jianghuai, Henan Yutong, Jiamusi, Nanyang Explosion Proof, Siemens |
|
|
Impeller, air inlet, blower casing, air damper |
Carbon steel |
Customizable |
|
|
Main shaft |
High strength carbon structure |
||
|
Bearing |
FAG, SKF, ZWZ, C&U，YLC… |
||
|
Bearing box |
Casting iron |
|
|
|
Drivetrain |
Coupling/motor |
Assignable |
|
|
Foundation bolt |
Carbon steel |
|
|
|
Optional
parts |
System base frame, Protective screening, Silencer, Inlet& outlet pipeline compensator, Inlet& outlet flange, Air damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Variable-frequency drive, Special motor, System monitoring &control instrument, Lubrication system and High-level oil tank. |
||
They are applicable to normal temperature and hot gas, clean and dusty gas, powder materials and tiny granules. They can apply into boilers, dust removal, de-nitration and desulfurization, cement, metallurgy, power generation, gas and material handling, smoke exhausting. It can also be customized according to special industries.
